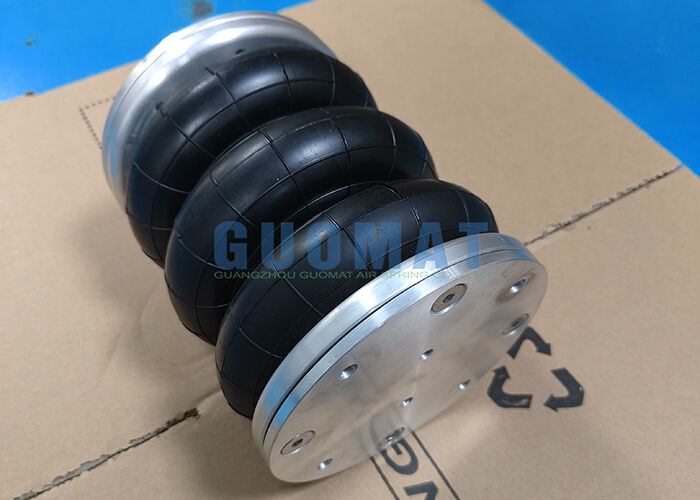

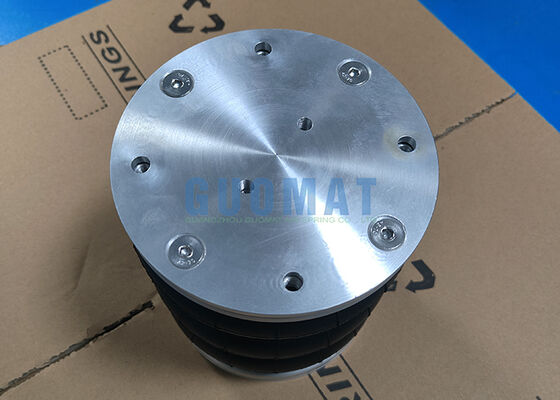

4.1/2" x 3 W01R584035 Firestone Pneumatic Vibration Isolator FT 44-15 DI Contitech Air Spring

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	GUOMAT
Сертификация:	ISO/TS16949:2009
Номер модели:	3Б4.5Х3П

Оплата и доставка Условия:

Количество мин заказа:	6шт
Цена:	US$159.9-199.9/PC
Упаковывая детали:	Сильная картонная коробка или по мере необходимости клиентов
Время доставки:	3-7 рабочих дней
Условия оплаты:	Л/К, Д/А, Д/П, Т/Т, западное соединение
Поставка способности:	1000 шт./неделя

контакт

Подробное описание продукта

Упаковка:	Сильные коробки	Номер свертки:	3
Рабочая форма:	Сжатие	Транспортный пакет:	Нейтральная упаковка
Диапазон размеров:	Различные размеры от маленького до большого диаметра.	Гарантия:	12 месяцев
минимальный заказ:	6шт	Файерстоун:	41/2С3,В01Р584035
Выделить:	Firestone pneumatic vibration isolator , Rubber air spring with warranty , Contitech air spring FT 44-15

4.1/2" x 3 W01R584035 Firestone Pneumatic Vibration Isolator FT 44-15 DI Contitech Air Spring

The GUOMAT 3B4.5X3P industrial air spring is a high-performance pneumatic vibration isolator designed as a direct replacement for Firestone W01R584035 and compatible with Contitech FT 44-15 DI systems. This premium air spring is widely used in industrial machinery, truck suspension systems, vibration control platforms, and equipment requiring precise shock absorption and load leveling.

Built with reinforced rubber and high-strength end plates, this 4.5" x 3 triple convolution air spring delivers stable damping performance, long service life, and excellent resistance to fatigue under continuous load conditions.

Compatible Part Numbers

Firestone Style	41/2''X3
Firestone Numbers	W01R584035, W01 R58 4035, W01-R58-4035
Contitech Numbers	FT44-15DI, FT 44-15DI, FT 44-15 DI
Dunlop Number	SP2895
Norgren Number	PM/31043
Parker Number	9109402

Key Features

Direct replacement for Firestone W01R584035
Compatible with Contitech FT 44-15 DI / Norgren / Dunlop equivalent models
Triple convolution rubber bellows design for enhanced stroke and stability
Excellent vibration isolation and shock absorption performance
High load-bearing capacity under 2-8 bar working pressure
Durable CR rubber construction for industrial environments
Removable connecting parts for easy installation and maintenance

Performance Advantages

This air spring is engineered to provide stable damping force across varying load conditions, making it ideal for both static and dynamic applications. The triple-convoluted structure ensures smoother motion control and higher flexibility compared to single or double convolution designs.

It effectively reduces mechanical vibration, protecting sensitive equipment and improving operational efficiency in industrial systems.
