6" x 1 W01R584052 Firestone Air Bellows Replacement FS 76-7 DS Contitech Air Spring Assembly

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	GUOMAT
Сертификация:	ISO/TS16949:2009
Номер модели:	1B6X1T

Оплата и доставка Условия:

Количество мин заказа:	6шт
Цена:	US$169.9-199.9/PC
Упаковывая детали:	Сильная картонная коробка или по мере необходимости клиентов
Время доставки:	3-7 рабочих дней
Условия оплаты:	Л/К, Д/А, Д/П, Т/Т, западное соединение
Поставка способности:	1000 шт./неделя

контакт

Подробное описание продукта

Имя:	Резиновая пневматическая пружина	Файерстоун НЕТ.:	W01R584052
Коррозионная стойкость:	Отличный	Структура:	Единственный запутанный
Часть:	Воздушная весна	Корабли в:	По всему миру
Статус:	Совершенно новый	Гарантия:	1 год
Выделить:	Firestone air spring assembly , W01R584052 air bellow replacement , Contitech suspension air spring

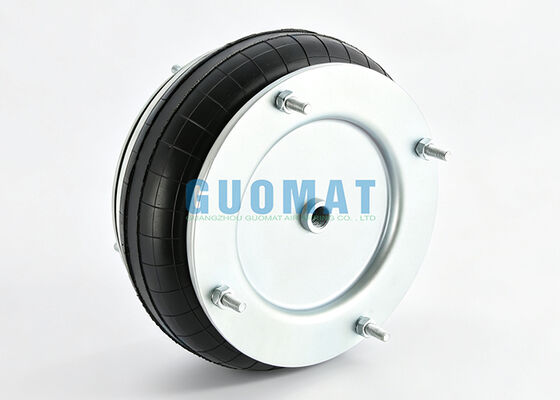

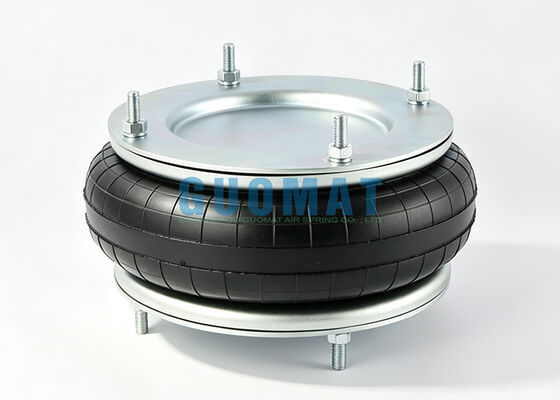

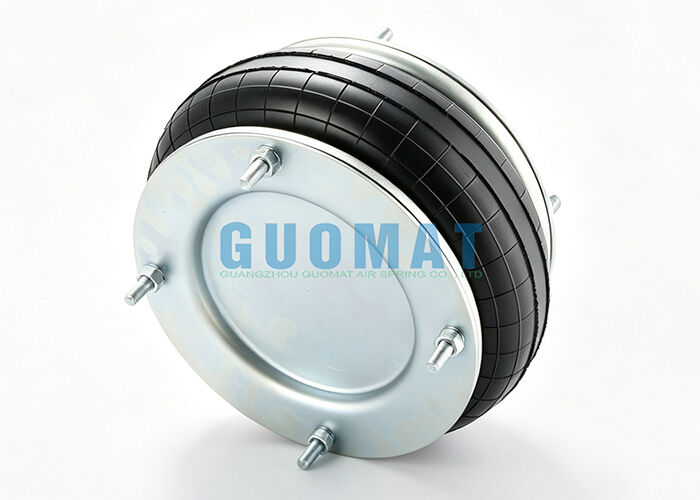

6" x 1 W01R584052 Firestone Air Bellows Replacement

GUOMAT 1B6X1T is a high-quality single convoluted air spring designed as a direct replacement for Firestone W01R584052 (6" x 1) and Contitech FS 76-7 DS industrial air spring assemblies. Engineered for stable load support, vibration isolation, and long service life in demanding industrial and commercial applications.

Manufacturing & Applications

Manufactured with reinforced natural rubber and high-strength steel end plates, this air bellows ensures reliable performance under continuous dynamic working conditions. Widely used in machinery, automation systems, and industrial vibration control equipment.

OEM Compatibility & Part Numbers

Continental ContiTech: FS 76-7 1/2 M10, FS 76-7 DS CR/FS76-7DSCR, FS 76-07 DS G1/2 CR, FS 76-7/FS76-7/FS767

Firestone: W01-R58-4052/W01 R58 4052/W01R584052

Firestone Style: 6" x1/6"x1/6x1

Dunlop FR: SP153

Dunlop UK (Pneuride): PNP 30551 0113/PNP305510113

Norgren: M/31061/ M 31061/ M31061

Nominal Dimensions: 6" x1/6"x1/6x1

Technical Specifications

Type	Single Convoluted Air Spring
Working Pressure	0-8 bar
Air Inlet	G 1/2
Cover Plate Diameter	153.5 mm
Bolt Pattern	4 × M10
Screw Center Distance	127 mm
Maximum Diameter	175 mm
Design Height	85 mm
Minimum Height	50 mm
Maximum Height	105 mm
Stroke	approx. 55-65 mm
Working Temperature	-30°C to +70°C

Quality Assurance

GUOMAT provides reliable aftermarket air spring solutions with OEM-level compatibility. Each unit undergoes rigorous testing for leakage, fatigue resistance, and load performance before shipment, ensuring consistent quality and stable operation in real working environments.
