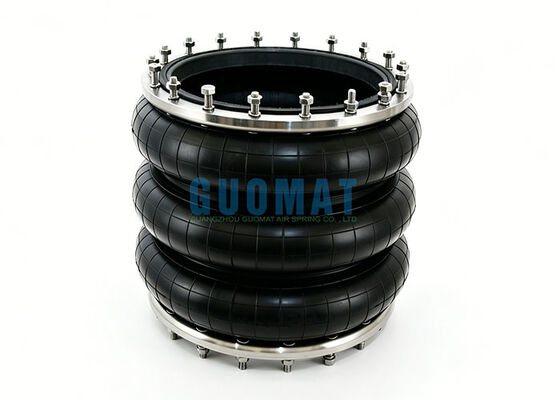

Firestone Air Spring Assembly W01-358-7761 Industrial Vibration Isolation Solution

Подробная информация о продукте:

Место происхождения:	ГУАНЧЖОУ КИТАЙ
Фирменное наименование:	GUOMAT
Сертификация:	ISO/TS16949, ISO9001
Номер модели:	3H7761

Оплата и доставка Условия:

Количество мин заказа:	5 шт.
Цена:	обсуждаемый
Упаковывая детали:	Прочная картонная коробка или по требованию клиентов
Время доставки:	3-7 рабочих дней
Условия оплаты:	Л/К, Т/Т, западное соединение или другие
Поставка способности:	1000 шт./неделя

контакт

Подробное описание продукта

Гарантия:	Один год	ОЭ НЕТ.:	Файерстоун W01-358-7761
Материал:	Резина+Сталь	Состояние:	Совсем новая воздушная весна
Пружинный тип:	Газ заполнен	Своения:	3
тип:	Соединение фланца	Другое имя:	Амортизатор
Выделить:	Firestone air spring assembly , industrial vibration isolation solution , rubber air spring with warranty

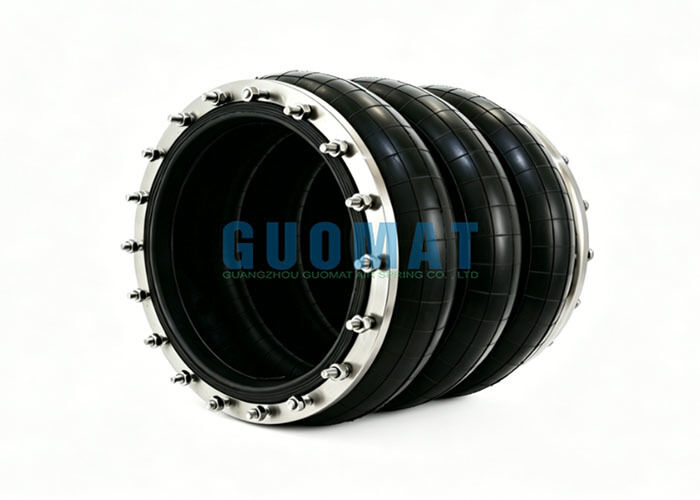

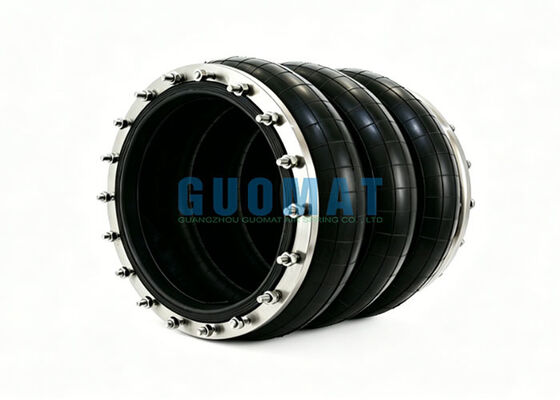

Firestone Air Spring Assembly W01-358-7761 Industrial Vibration Isolation Solution

Product Overview

The GUOMAT 3H7761 Flange Air Spring is engineered to provide exceptional vibration isolation, shock absorption, and load support for a wide range of industrial equipment. Designed as a direct replacement for Firestone W01-358-7761 (Style 312), this air spring assembly combines robust construction with reliable performance in demanding industrial environments.

Product Specifications

Type: Flange Air Spring
Brand: GUOMAT
Model No.: 3H7761
Warranty: 1 Year
Material: Rubber + Steel

Construction & Performance

Manufactured from premium rubber compounds reinforced with high-strength cord fabric, the GUOMAT 3H7761 delivers excellent resistance to fatigue, abrasion, and repeated compression cycles. The heavy-duty steel flange rings ensure secure mounting and long-term structural integrity, even under continuous operation.

Unlike traditional metal springs, the GUOMAT air spring utilizes compressed air as the elastic medium, allowing the system to adapt to varying loads while maintaining superior vibration isolation performance. This helps reduce machine noise, minimize structural stress, and extend the service life of surrounding components.

Cross-Reference Part Numbers

Firestone Style	312
Firestone	W013587761; W01 358 7761; W01-358-7761
Firestone	WO13587761; WO1 358 7761; WO1-358-7761

Technical Data

Bolt Specification	3/8-24 UNF (American Standard Fine Thread)
Number of Flange Ring Bolt Holes	18
Flange Ring Diameter	15.13 inches / 384.3 mm
Center Distance Between Bolts	13.81 inches / 350.7 mm
Airbag Outer Diameter	16.00 inches / 406.4 mm
Included Bolt Length	1.87 inches / 47.5 mm
Minimum Height	4.3 inches / 109.2 mm

Quality Assurance

Every GUOMAT 3H7761 air spring undergoes strict quality inspections and performance testing before shipment. Each unit is checked for air tightness, dimensional accuracy, and structural integrity to ensure reliable operation in industrial applications worldwide.

Whether used for machinery isolation, shock reduction, or pneumatic force generation, the GUOMAT 3H7761 provides a cost-effective and dependable alternative to the Firestone W01-358-7761 air spring assembly.
