2M2A Firestone Sleeve Type Air Bellow W02-M58-3019 Truck Cabin Air Shock Absorber Replacement

Подробная информация о продукте:

Место происхождения:	Гуандун, Китай
Фирменное наименование:	GUOMAT
Сертификация:	ISO/TS16949:2009
Номер модели:	G3019

Оплата и доставка Условия:

Количество мин заказа:	6 шт.
Цена:	$49.9/pc-$89.9/pc
Упаковывая детали:	Сильная картонная коробка или по мере необходимости клиентов
Время доставки:	2-8 рабочих дней
Условия оплаты:	T/T, Western Union, аккредитив, Paypal, другие переговоры
Поставка способности:	10000 шт/неделя

контакт

Подробное описание продукта

Основной материал:	Резина	Позиция:	Передний
Заводская гарантия:	1 год	тип:	Давление воздуха
Запчасти для грузовика:	Детали кабины	Корсс:	Файерстоун W02-M58-3019
Бренд:	Гумат	Воздушная дыра:	1/8BSP
Выделить:	Firestone sleeve type air bellow , truck cabin air shock absorber , W02-M58-3019 shock absorber replacement

2M2A Firestone Sleeve Type Air Bellow W02-M58-3019 Truck Cabin Air Shock Absorber Replacement

Product Overview

Item Description	Truck cab air spring
Model Number	G3019
Size	Standard
Material	Rubber
Warranty	12 Months

Alternative Part Numbers

Cross Firestone Style Number: 2M2A
Cross Firestone Number: W02M583019
Cross Firestone Number: W02 M58 3019
Cross Firestone Number: W02-M58-3019
W02-M58-3019: Blind Nut, 1/8BSP, plastic studs

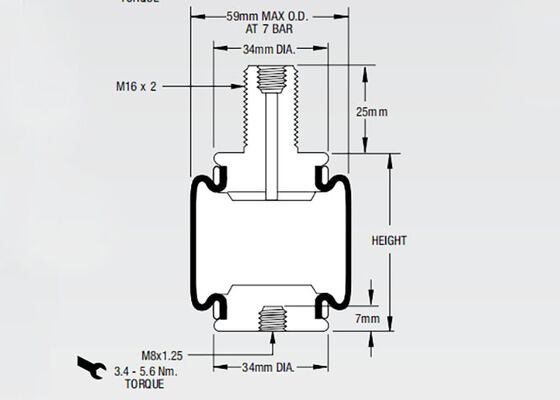

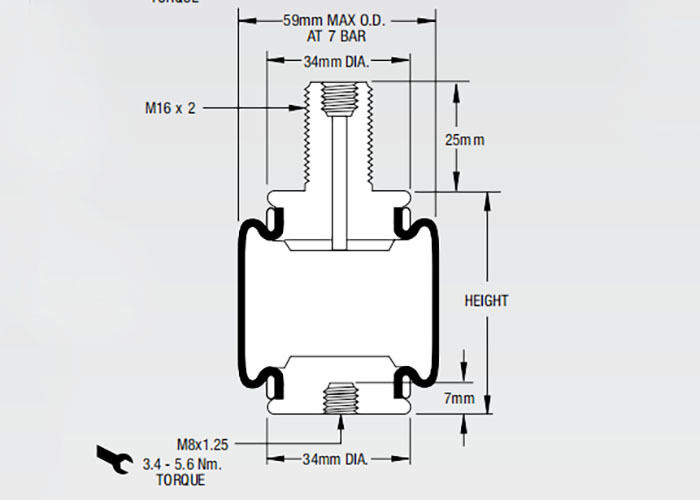

Technical Specifications

Cover plate diameter: 34mm
Cover plate thickness: 7mm
Threaded hole: M8X1.25
Base height: 25mm
Base width: 34mm

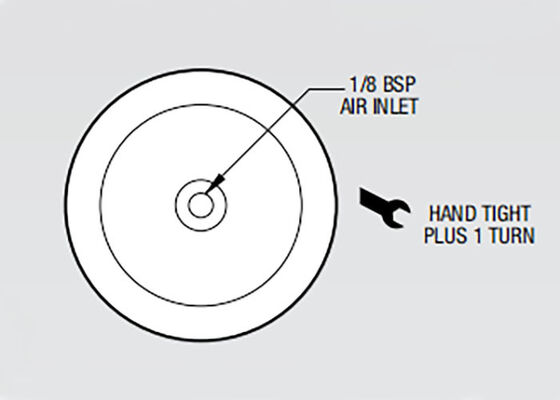

Air vent: 1/8 BSP
Maximum outer diameter: 59mm
Minimum height: 30mm
Maximum height: 60mm

Performance Data

Assembly Height (mm)	Volume @7bar (cu cm)	EFF Area @7bar (cm²)	KN Force
			@3BAR	@4BAR	@5BAR	@6BAR	@7BAR
55	80.30	10.4	0.32	0.41	0.52	0.62	0.73
45	7.46	13.6	0.42	0.55	0.68	0.82	0.95
35	58.99	14.8	0.45	0.60	0.75	0.90	1.04
25	40.56	15.6	0.49	0.64	0.79	0.94	1.09

Product Description

GUOMAT G3019 Truck Cab Air Spring is designed as a direct replacement for Firestone W02-M58-3019, offering reliable performance and stable quality for heavy-duty truck cabin suspension systems. Manufactured with high-strength rubber and reinforced cord layers, the G3019 effectively absorbs vibration and reduces cabin shock, helping improve driver comfort and protect cabin components during long-distance transportation.

With precise dimensions and OEM-compatible installation design, GUOMAT G3019 can completely replace Firestone W02-M58-3019 without modification. It is widely used in truck cab suspension applications and provides excellent durability, air tightness, and long service life under demanding road conditions.
