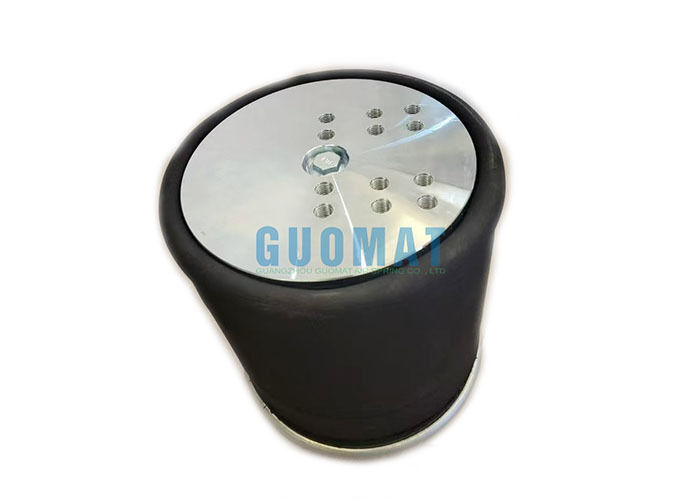

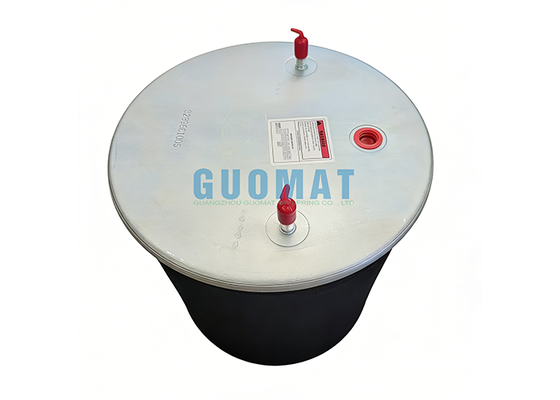

881MB Contitech Truck Suspension Parts W01-M58-8966 Firestone Air Spring With Plastic Piston

Подробная информация о продукте:

Место происхождения:	Гуандун, Китай
Фирменное наименование:	GUOMAT
Сертификация:	ISO/TS16949:2009
Номер модели:	1T8966

Оплата и доставка Условия:

Количество мин заказа:	5 шт.
Цена:	USD79.9-99.9/PC
Упаковывая детали:	Прочная картонная коробка или по требованию клиентов
Время доставки:	3-7 рабочих дней
Условия оплаты:	Л/К, Т/Т, западное соединение или другие
Поставка способности:	1000 шт./неделя

контакт

Подробное описание продукта

OEM-номер:	Файерстоун W01-M58-8966	Марка автомобиля:	Тележка Форда
Бренд:	Гумат	Функция:	Амортизатор
Качество:	100% протестировано	Ключевые слова:	Амортизатор с пневматической подвеской
Спецификация:	OEM-стандарт	Часть:	Воздушная подвеска грузовика
Выделить:	Contitech truck air spring , Firestone air spring with piston , plastic piston truck suspension parts

881MB Contitech Truck Suspension Parts W01-M58-8966 Firestone Air Spring With Plastic Piston

High-quality replacement air spring designed for truck suspension systems, featuring durable rubber and steel construction with plastic piston.

Product Specifications

Model Name	Truck Air Spring
Brand	GUOMAT
Model Number	1T8966
Material	Rubber and Steel
Warranty	1 Year

Compatible Part Numbers

Firestone W01-M58-8966

Firestone W01 M58 8966

Firestone W01M588966

Firestone 1T66F-10.8

Contitech 881MB

Contitech 881 MB

Contitech BPW36

Goodyear 1R14-703

Goodyear 1R 14-703

Goodyear 1R14 703

Meritor MLF7065

Taurus KR836-05

Dunlop FR D14B36

Phoenix 14DK32-1

Granning 15917

Airtech 130522

Airtech 3881-01K

Pirelli 1TC360-45

WABCO 9518147120

BPW 05.429.40.08

BPW 05.429.40.61.1

BPW 05.429.41.36

Technical Specifications

Top cover diameter	1315mm
Blind nuts	2pcs x M12 x 1.75
Center distance between blind nuts	210mm
Air vent	M22 x 1.5
Center distance between blind nuts and air vent	95mm
Base width	250mm
Base height	188mm
Threaded holes	12pcs x M16 Z2.0
Minimum height	250mm
Maximum height	710mm

How to Choose the Right Truck Air Springs

Selecting the proper truck air springs enhances driving comfort, extends suspension system lifespan, and reduces maintenance costs.

Confirm Compatible Vehicle and Model
Different truck brands and tonnages require specific air spring dimensions, chamber volumes, and interface types. Verify the original manufacturer's part number - GUOMAT 1T8966 serves as a standard replacement model.
Focus on Materials and Structure
Premium air springs utilize rubber and steel composite construction:
- Rubber components: Resistant to aging, ozone, and extreme temperatures
- Steel components: End caps and pistons feature rust-proof and impact-resistant properties
GUOMAT 1T8966 employs rubber + steel design for optimal flexibility and load-bearing strength.
Confirm Load Capacity and Operating Air Pressure
Select air springs matching your vehicle's maximum axle load. Standard operating pressure ranges from 5-10 bar. Incorrect sizing leads to premature spring fatigue or compromised comfort.
Warranty and After-Sales Support
Reputable products include clearly defined warranty periods. GUOMAT provides 1-year warranty coverage for material and workmanship issues under normal operating conditions.
