1R9-065 Goodyear Air Spring Bags 566-18-3-003 Truck Spare Parts With Steel Piston

Подробная информация о продукте:

Место происхождения:	Гуанчжоу Китай
Фирменное наименование:	GUOMAT
Сертификация:	ISO/TS16949, ISO9001
Номер модели:	1T9065

Оплата и доставка Условия:

Количество мин заказа:	5 шт.
Цена:	USD79.9-89.9/PC
Упаковывая детали:	Прочная картонная коробка или по требованию клиентов
Время доставки:	3-7 рабочих дней
Условия оплаты:	Л/К, Т/Т, западное соединение или другие
Поставка способности:	1000 шт./неделя

контакт

Подробное описание продукта

Тип пружины:	Воздушная весна	Функция:	Уменьшить шок
Упаковка:	Сильные коробки	Гарантия:	12 месяцев
Бренд:	Гумат	минимальный заказ:	1 ПК
Состояние:	Новый	Гудиер:	1R9-065
Выделить:	Goodyear air spring bags , truck air springs with steel piston , 1R9-065 air spring spare parts

1R9-065 Goodyear Air Spring Bags 566-18-3-003 Truck Spare Parts With Steel Piston

High-quality replacement air spring bags designed for trucks and trailers, featuring durable rubber bellows and steel cover plate construction.

Product Specifications

Model	1T9065
Product Name	Air Spring
Application	For Truck, For Trailer
Material	Rubber Bellows and Steel Cover Plate
Warranty	1 Year
Purpose	For Replace/Repair

Replacement Part Numbers

Goodyear

1R9-065
1R 9-065
1R9 065
566-18-3-003
566 18 3 003
566183003
566-16-7-009
566 16 7 009
566167009

Firestone

2119
W01-358-2119
W01 358 2119
W013582119
8997
W01-358-8997
W01 358 8997
W013588997

Other Brands

Contitech: 66.5-11S027, 68108
AUTOMANN: AB1DK10A-2119, AB1DK10D-8997
GRANNING: 5112
HENDRICKSON: B-2394
NEWAY: 905-57-029, 905-57-034
RIDEWELL: 1003588997C
TRIANGLE: 8525
WATSON&CHALIN: AS-0026

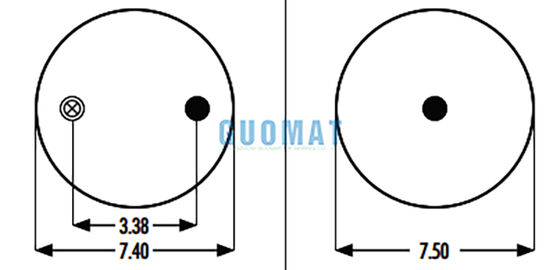

Technical Specifications

Bottom Plate/Piston Type	Steel
Top Plate Hole/Stud Qty	2
Top Plate Diameter	7.4
Top Plate C to C Diameter	3.38
Bottom Plate Hole/Stud Qty	1
Bottom Plate Diameter	7.5
Bottom Plate C to C Diameter	N/A
Bottom Plate Alignment	Parallel
Bumper	No
Bracket	N/A

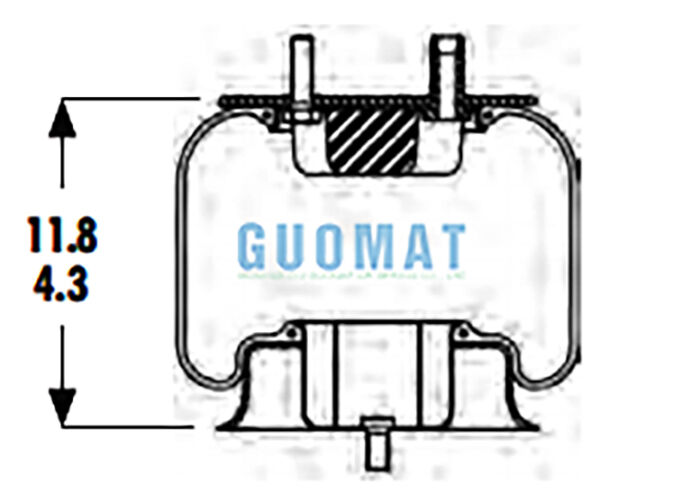

Minimum Height	4.3
Maximum Height	11.8

GUOMAT 1T9065 Air Spring Features

GUOMAT rolling lobe air springs are engineered to enhance the performance and durability of trucks, trailers, and buses. These air springs provide reliable load support and help maintain consistent ride height, ensuring stable operation under varying load conditions.

With a rolling lobe structure, GUOMAT air springs deliver smooth and flexible suspension movement, allowing vehicles to achieve level hauling and long-lasting performance in demanding environments.

GUOMAT air bags help protect both the vehicle and its cargo by reducing shock and vibration during transportation. Compared with traditional steel springs, they offer a quieter ride, better cushioning effect, and reduced vibration transfer, which contributes to longer service life.

For drivers, this means enhanced ride comfort, reduced fatigue, and improved focus during long-distance driving. Sensitive cargo benefits from better protection, minimizing the risk of damage caused by road impact and vibration.
