Fire-stone W01-358-8027 38 W01-358-8029 3 Convoluted Air Spring Actuator
Refer NO.
Fire-stone W01-358-8027
Fire-stone W01 358 8027
Fire-stone W013588027
Fire-stone Style 38
Fire-stone W01-358-8029
Fire-stone W013588029
Fire-stone W01 358 8029
Contitech FT 330-29 466
Contitech FT 330 29 466
Contitech FT330-29 466
Contitech FT330 29 466
Contitech FT33029 466
Contitech FT 33029466
Goodyear 578933100
Goodyear 3B12-310
Goodyear 3B12 310
Goodyear 3B12310
Triangle 4466
Triangle 6334
Arvin Meritor 200117
Suspensions 200117
Silent Drive
Histeer
Specifications and Detailed Technical Parameters: 3B8027
Top plate screw (nut) teeth: 3/4-16UNC; 1/2-13UNC
Bottom cover plate screw (nut) teeth: 2×3/8-16UNC
The screw center distance of the Top cover plate: 157mm
The screw center distance of the bottom cover plate: 157mm
- Air hole/air inlet/air fittings
Air hole/air inlet: 1/4NPT
Top plate diameter (width): 231 mm
Diameter (width) of the bottom cover plate: 231 mm
Rubber Bellows MAX Diameter: 330mm
The Working Stroke: 117mm to 460mm
- Bumper block/bumper block
With bumper block
- Belt loop/Belt loop/Girdle Hoop
With belt loop: 2 pieces of belt loop/girdle hoop
Min. pressure: 0 bar
Return force to min.height: ≤400N
Overall weight with clamped plates: 5.9kg
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Height H[mm] | 380 | 8.8 | 11.9 | 15.1 | 18.4 | 21.7 | 25.1 | 23.6 |
| 340 | 10.7 | 14.4 | 18.2 | 22.0 | 25.9 | 29.8 | 21.6 |
| 300 | 12.3 | 16.5 | 20.8 | 25.1 | 29.5 | 33.7 | 19.2 |
| 260 | 13.7 | 18.2 | 22.9 | 27.6 | 32.3 | 36.9 | 16.6 |
| 220 | 14.8 | 19.5 | 24.6 | 29.6 | 34.6 | 39.5 | 13.8 |
| 180 | 15.9 | 21.1 | 26.5 | 31.8 | 37.2 | 42.4 | 10.7 |
| 140 | 17.0 | 22.4 | 28.1 | 33.6 | 39.1 | 44.7 | 7.5 |
Other types of 3 convolutions fir-estone air spring replacement we could offer
AIRSUSTECH No. | Contitech No. | Fire-stone No. |
3B7996 | FT330-29 520 | W01-358-7996 |
3B7994 | FT330-29 546 | W01-358-7994 |
3B7995 | FT330-29 547/64573 | W01-358-7995 |
3B8008 | FT330-29 431 | W01-358-8008 |
3B8010 | FT330-29 432 | W01-358-8010 |
3B8030 | FT330-29 498 | W01-358-8030/38 |
3B8006 | FT 330-29 430 | W01 358 8006/FLEX 38R/38D |
3B6383-38 | FT 530-30 | / |
3B6386 | FT 530-30 | / |
3B7808 | FT 530-32 336/FT 530 32 329 | W01-358-7808/ W01-358-7798/ FLEX 313D |
3B53032 | FT 530-32 -60717 | FLEX 313D |

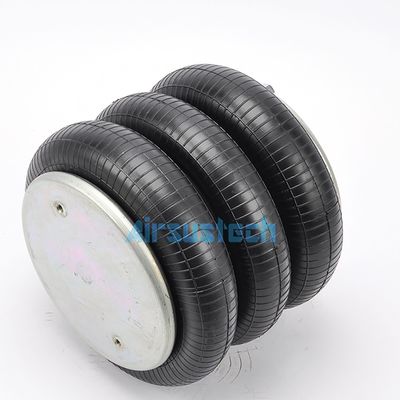

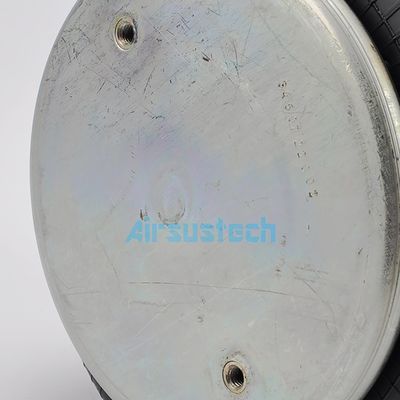

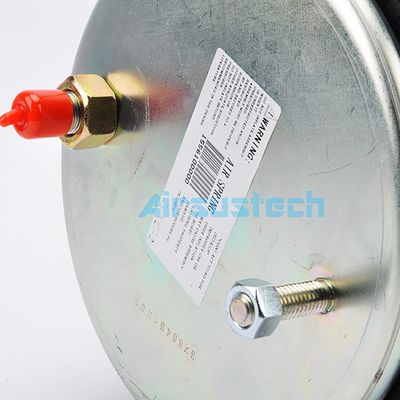

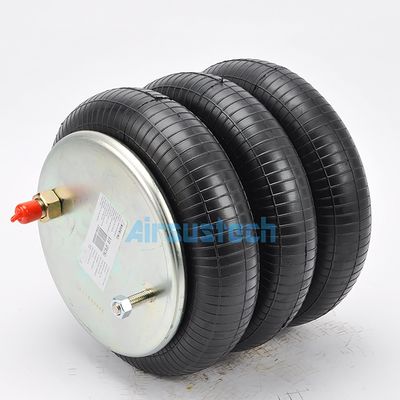

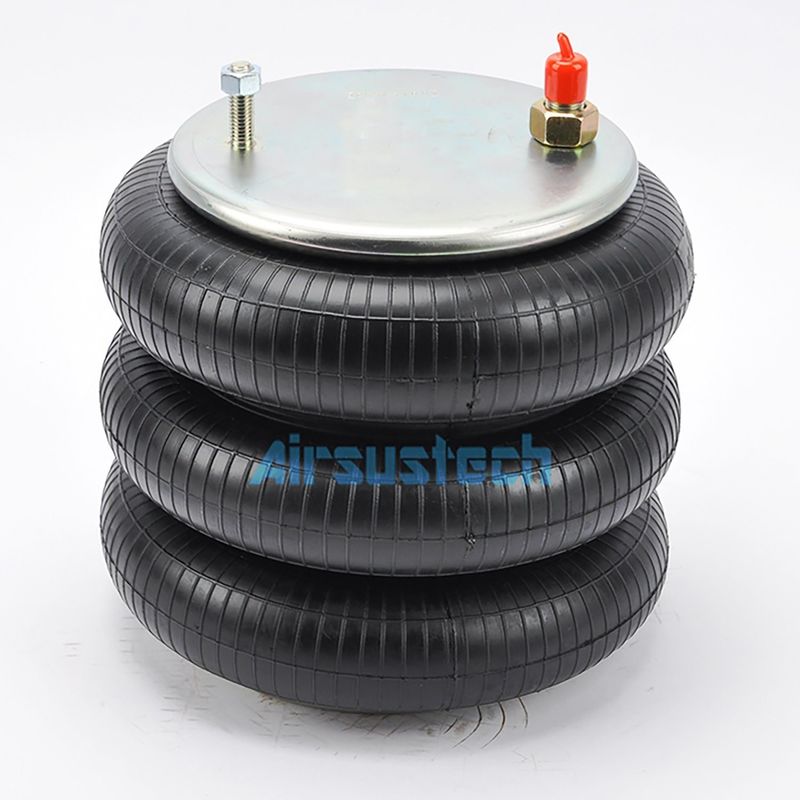

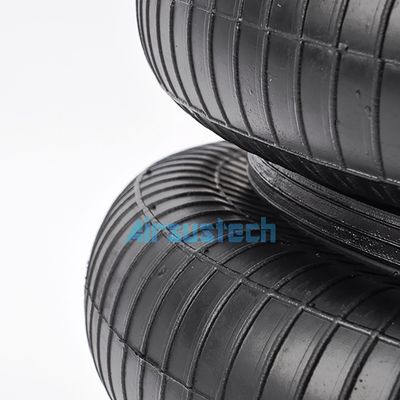

The related picture of 3B8027
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Factory workshop
FAQ
Q1:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3: What certification does your product pass?
A: Our products are certified to ISO/TS16949:2009 international quality standards. Please rest assure that we have very strict Quality Control Systems.
Q4 : Can I use my own logo?
A:Sure. We can do as per the customer's requirements.
