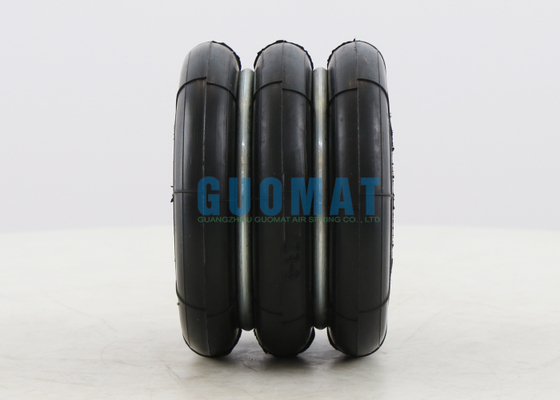

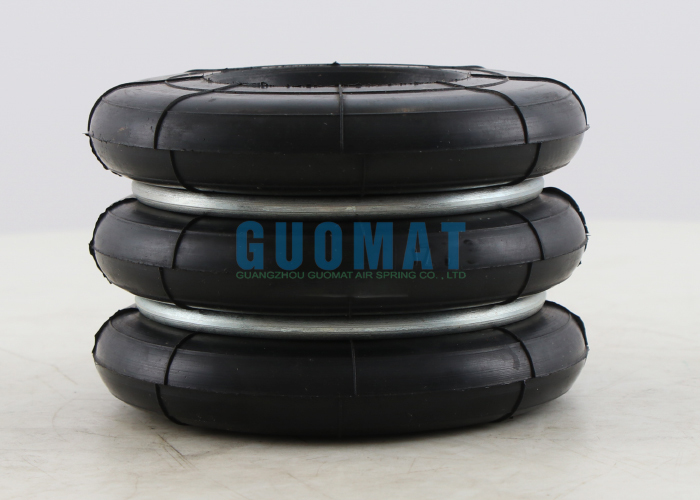

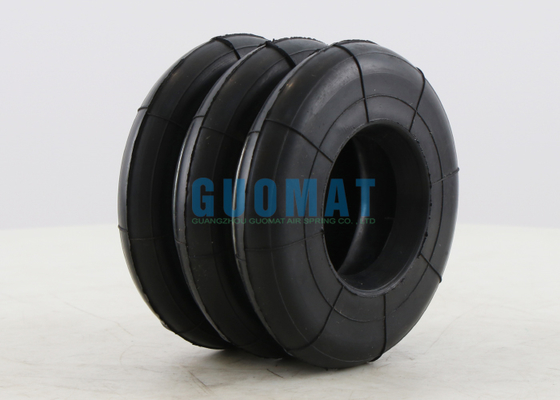

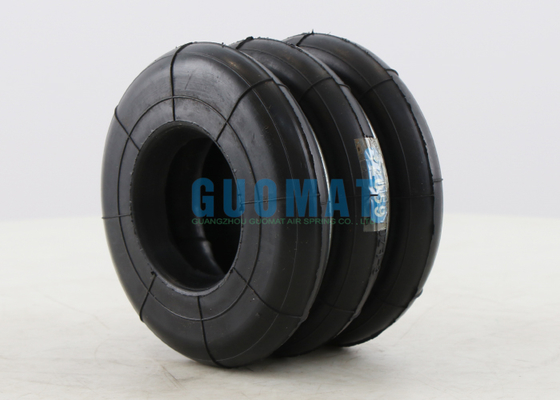

Natural Rubber Air Spring Bellow S-90-3R for Punching Machine

Подробная информация о продукте:

Место происхождения:	Гуандун, Китай
Фирменное наименование:	GUOMAT
Сертификация:	ISO/TS16949:2009
Номер модели:	F-90-3

Оплата и доставка Условия:

Количество мин заказа:	6 шт
Цена:	$89.9/pc-$129.9/pc
Упаковывая детали:	Сильная коробка картонной коробки или в качестве клиентов
Время доставки:	2-8 рабочих дней
Условия оплаты:	T/T, Western Union, L/C.
Поставка способности:	1000 шт./Неделя

контакт

Подробное описание продукта

Тип:	Тройной замысловатый тип	Материал:	Натуральный каучук
Гарантия:	12 месяцев гарантии	OEM:	Йокохама С-90-3
Приложение:	Для пробивая машины	Высота конструкции:	70 мм
Крышка тарелки:	Договоренно	Другое имя:	Подвес аэродинамической подъемной силы
Выделить:	natural rubber air spring , punching machine air bellow , S-90-3R rubber air spring

Natural Rubber Air Spring Bellow S-90-3R/SC-90-3R YOKOHAMA Punching Equipment Air Bags

Product Specifications

Parameter	Description
Brand	GUOMAT
Product Type	Punch Air Spring
Model Number	F-90-3
Product Name	Rubber Air Spring For Punching Machine
Primary Material	High-Strength Rubber
Operating Medium	Compressed Air (Dry, Lubricated)
Temperature Range Standard	-30°C to +70°C
Pressure Range	2 - 7 bar
Application	For Industrial Punching Machine, Punching Equipment
Warranty	1 Year
Design Height	70mm
Natural Outer Diameter	110mm
Nominal Diameter	54mm

Compatible Models

YOKOHAMA Air Bellow: S-90-3
YOKOHAMA Air Bellow: S 90 3
YOKOHAMA Air Bellow: S90-3
YOKOHAMA Air Bellow: S-90-3R
YOKOHAMA Air Bellow: S 90 3R
YOKOHAMA Air Bellow: S90-3R
YOKOHAMA Air Bellow: SC-90-3R
YOKOHAMA Air Bellow: SC 90 3R
YOKOHAMA Air Bellow: SC90-3R

Product Overview

An air spring is an inflatable rubber bladder that uses the elasticity of compressed air within a confined space to support loads and absorb shock and vibration. While its operating principle is similar to that of a car tire, its design and purpose are specifically engineered for industrial applications.

Construction Details

Air Bladder: Made of high-quality natural rubber reinforced with cord layers
Cover Plates: Upper and lower metal pressure plates
Operation: Compressed air injection increases internal pressure, generating support force and elastic deformation

Material Advantages

High-Strength Rubber: Provides excellent flexibility and fatigue life
Cord Reinforcement: Multiple layers of high-strength cord (nylon, polyester, or aramid) prevent over-expansion
Specialized Formula: Offers oil resistance, airtightness, and aging resistance

Key Features

Capable of withstanding high-speed reciprocating compression (hundreds of times per minute)
Excellent airtightness ensures stable pressure maintenance
Oil-resistant formula suitable for lubricated environments
Long-term durability under specified temperature ranges (-30°C to +70°C)

Selection & Maintenance Guidelines

Selection Parameters
