Durable Rubber Air Bellow W01-358-7845 Firestone 3B14-450 Goodyear Air Spring Assembly

Подробная информация о продукте:

Место происхождения:	Гуандун, Китай
Фирменное наименование:	GUOMAT
Сертификация:	ISO/TS16949:2009
Номер модели:	3B7845

Оплата и доставка Условия:

Количество мин заказа:	6 шт
Цена:	$69.9-79.9/pc
Упаковывая детали:	Сильная коробка картонной коробки или в качестве клиентов
Время доставки:	2-8 рабочих дней
Условия оплаты:	T/T, Western Union, L/C
Поставка способности:	1000 шт./Неделя

контакт

Подробное описание продукта

Пружинный тип:	Замыкающийся воздушный гул	Материал:	каучук и сталь
Гарантия:	12 месяцев	Цвет:	Черный
Приложение:	Для промышленной машины	Функция:	Подниматься
Крест:	Goodyear 3B14-450	OEM:	Firestone W01-358-7845
Выделить:	Firestone rubber air bellow assembly , Goodyear industrial air spring , durable air spring W01-358-7845

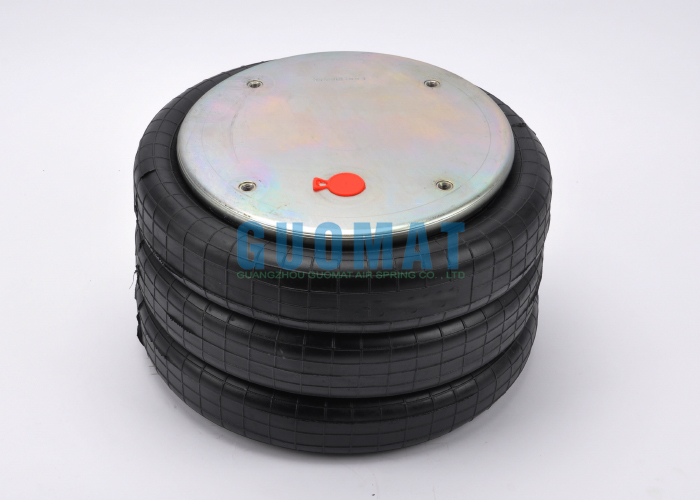

Durable Rubber Air Bellow W01-358-7845 Firestone 3B14-450 Goodyear Air Spring Assembly

Product Specifications

Attribute	Value
Spring Type	Convoluted Air Bellow
Material	Rubber and Steel
Warranty	12 Months
Color	Black
Application	For Industrial Machine
Function	Lifting
Cross	Goodyear 3B14-450
OEM	Firestone W01-358-7845

Product Description

Industrial air springs utilize the expandability of compressed air to achieve lifting functions. By adjusting the air pressure, the height and stiffness of the elastic body are altered, thereby supporting or lifting the load. Their core advantages lie in precise control of lifting height, strong load-bearing capacity, and excellent cushioning performance, making them suitable for applications such as heavy equipment positioning and automated production line leveling.

Their structure typically consists of a rubber airbag, upper and lower covers, and an air circuit system, offering fast response times and low energy consumption. They are more flexible and fatigue-resistant than traditional mechanical lifting systems. They require a pressure regulating valve and sensor to ensure stability, and excel in vibration isolation and dynamic load applications, making them an efficient and flexible lifting solution for the industrial sector.

Product Name:

Industrial Air Spring

Brand:

GUOMAT

GUOMAT NO.:

3B7845

Material:

Rubber and Steel

Warranty:

12 Months

Type:

Inflatable

Convolutions:

Three

Technical Data

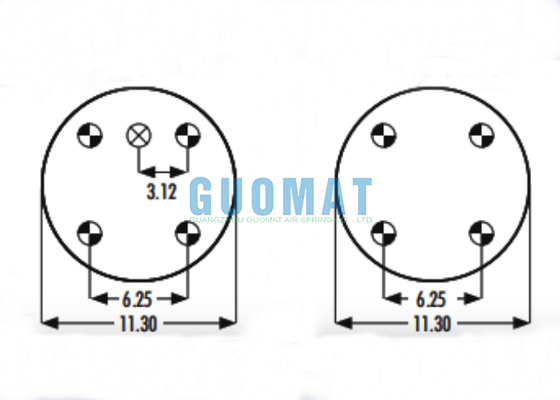

Top cover diameter:

11.30''

Center distance between threaded hole:

6.25''

Center distance between threaded hole and air hole:

3.12''

Bottom cover diameter:

11.30''

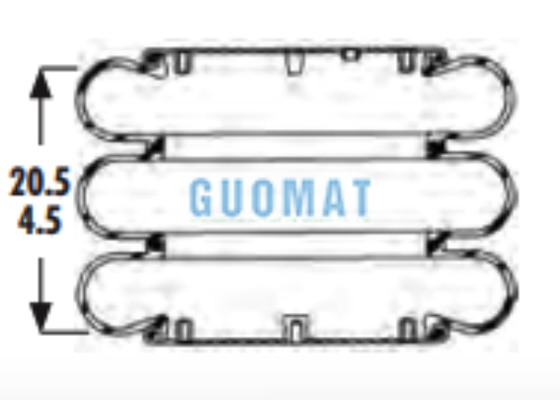

Maximum height:

20.50''

Minimum height:

4.5''

Cross-Reference

Cross-Reference	OE Manufacturer
Firestone Style 333 Firestone No. W01-358-7845 Firestone No. W01 358 7845 Firestone No. W013587845 FleetPride No. AS7845 Goodyear No. 3B14-450 Goodyear No. 3B 14-450 Goodyear Flex No. 556338335 Goodyear Flex No. 556 33 8 335 Goodyear Flex No. 556-33-8-335	Taurus No. 6335 Triangle No.AS-4521 Triangle No.AS 4521 Triangle No.AS4521 TRP No. AS78450 Automann No.SP3B32RA-7845 Automann No.SP3B32RA 7845 Automann No.SP3B32RA7845

Firestone Style 333 Assembly Number

W01-358-7845: Blind nuts,1/4NPT
W01-358-7838: Blind nuts,1/4NPT,bumper
W01-358-7842: Blind nuts,3/4NPT
W01-358-7849: Blind nuts,3/4NPT,bumper
W01-358-7830: Countersunk steel bead ring 13/4 bolts,nuts,washers
W01-358-7019: Rubber bellows only

Force Table

Assembly Height (in.)	Volume@ 100PSIG(in3)	Pounds Force @20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
16	1904	1338	2866	4524	6241	8062
14	1718	1706	3478	5388	7325	9338
12	1507	1981	3955	6083	8200	10405
10	1274	2208	4376	6698	9003	11400
8	1022	2389	4733	7220	9710	12278
6	754	2574	5087	7724	10396	13139
4	473	3049	5871	8787	11827	14918
