Весна воздуха W01-358-9601 свертки континентальной индустрии FS 5450-16 RS одиночная

Весна воздуха W01-358-9601 свертки континентальной индустрии FS 5450-16 RS одиночная

  • Весна воздуха W01-358-9601 свертки континентальной индустрии FS 5450-16 RS одиночная
Весна воздуха W01-358-9601 свертки континентальной индустрии FS 5450-16 RS одиночная
Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: GUOMAT
Сертификация: ISO/TS16949:2009
Номер модели: 1F9601
Оплата и доставка Условия:
Количество мин заказа: могущий быть предметом переговоров
Цена: Negotiable
Упаковывая детали: сильная коробка коробки или как потребность клиентов
Время доставки: 2-8 дней работы
Условия оплаты: Т/Т, западное соединение, ПайПал или другие
Поставка способности: 1000пкс/век
контакт
Подробное описание продукта
Материал: Алюминиевый сплав и резина Континентальный: FS 5450-16
Гарантия: 12 месяца Чистый вес: 21,0 KG
Другое имя: Высокопрочная весна воздуха Способность давления: ПА 0.2-0.8 м
Вес брутто: 23,0 KG Кольцо фланца: С
Метод соединения: Соединение фланца Фирестоне: W01-358-9601
Высокий свет:

Весна воздуха FS 5450-16 RS замысловатая

,

весна воздуха одиночной свертки резиновая

FS 5450-16 RS Continental Industry Single Convolution Air Actuator Firestone W01-358-9601 Air Spring​





FS 5450-16 RS Cross OEM:



GUOMAT 1F9601

Continental FS 5450-16 RS UNF HP,

ContiTECH FS 5450-16 RS UNF HP,

ContiTECH FS5450-16 RS UNF HP,

Firestone W01-358-9601

Firestone W01 358 1021

Firestone W013589601

Firestone W013581021

Firestone W01 358 9601

Firestone W01-358-1021

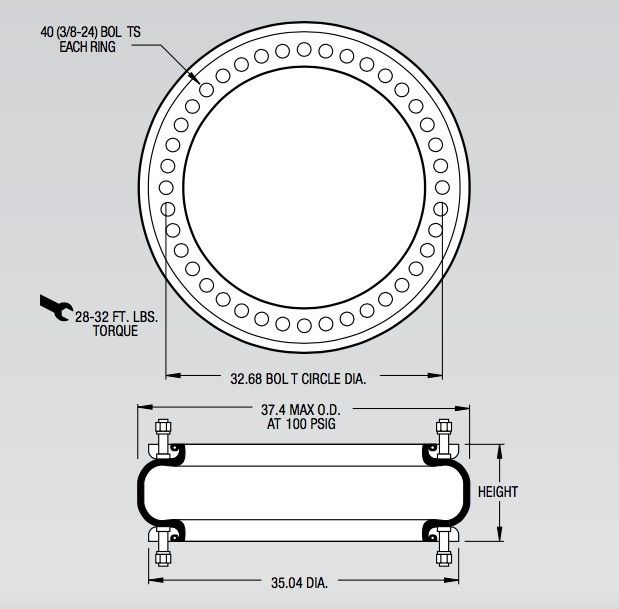

FS 5450-16 RS Industrial Single Convoluted Air Spring Specifications





Product Specifications
Type: 148-1
Aluminum clamping ring: 40PCS (3/8-24) BOL TS EACH RING
Bolt diameter Ø: 830 mm
Board diameter: 890 mm
Maximum diameter at 7 bar: 950 mm
Minimum height: 64 mm
Maximum height: 215 mm
Stroke: 151 mm
Maximum force: 451.81 kN at a height of 80 mm





Nut / Blind Nut

The Long Of The Nut:38 mm

Top Cover Plate Screw number: 40 pcs

Bottom Cover Plate Screw number : 40 pcs

Top Cover Plate Screw (Nut) Tooth : 3/8

Screw Center Distance of Top Cover Plate : 596 mm

Bottom Cover Plate Screw (Nut) Tooth : 3/8

Screw Center Distance of Bottom Cover Plate : 830 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2



Cover Plate

Top Cover Plate Diameter: 890 mm

Bottom Cover Plate Diameter:890 mm



Rubber Bellows

Rubber Bellows MAX Diameter : 950mm

Rubber Bellows Natural Height :920 mm



Bumper block / Buffer block

Without Bumper Block



Girdle Hoop / Girdle Ring

Without Girdle Hoop



bellows type industrial air spring,

single-turn, effective area 5450cm square,

maximum stroke 16cm,

stud bolt installation,

inch seal ring, high strength 175 PSI Max
Manufacturer: Mainland
Maximum inflation pressure
120 psi
series
RS
Bellows type
Single convolution
weight
48.5 lbs





Style 148-1 High Strength Con-struction



Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers
Firestone W01-358-9601





Rubber bellows only
Firestone W01-358-1021
Assembly weight...................................................... 72.9 lbs.
Force to collapse to minimum height (@ 0 PSIG) ... 310 lbs.





The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects





Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate



Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.



Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.



Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.



Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.



Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.





GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!





  • They almost do not need to maintain.
  • Increase the service life of tires and brake pads.
  • Let you pull anything; Eliminate expensive admission cost.
  • Greatly reduce the breakage of the other vehicle components and maintenance.
  • Back to you in the scrappage, truck and trailer with air suspension is more valuable.
  • Allow the perfect load balancing between axles; Allow you to run in one of the largest legal restrictions.
  • Reduce the discomfort and driver fatigue risk; Improve the efficiency of the driver's safety, and loyalty
  • To provide smooth to load, reduce the cost of expensive insurance claims and packaging.
